Modern projects increasingly require faster and more accurate production of manufacturing documentation. Autodesk Advance Steel is AutoCAD-based steel detailing software designed for modeling and detailing steel structures. The tool combines the convenience of 3D modeling software with automated drawing production and manufacturing data, making it a reliable resource for designers, detailers, and steel fabricators.
Advance Steel is especially useful for companies that need to quickly convert conceptual models into fabrication-ready models. The program supports complete BIM workflows, so the model does not die at the drawing stage. It is easy to transfer it for manufacturing, installation, and coordination with related parties. Thanks to advanced interoperability, the eternal problem of data exchange between design, analysis, and production is solved.

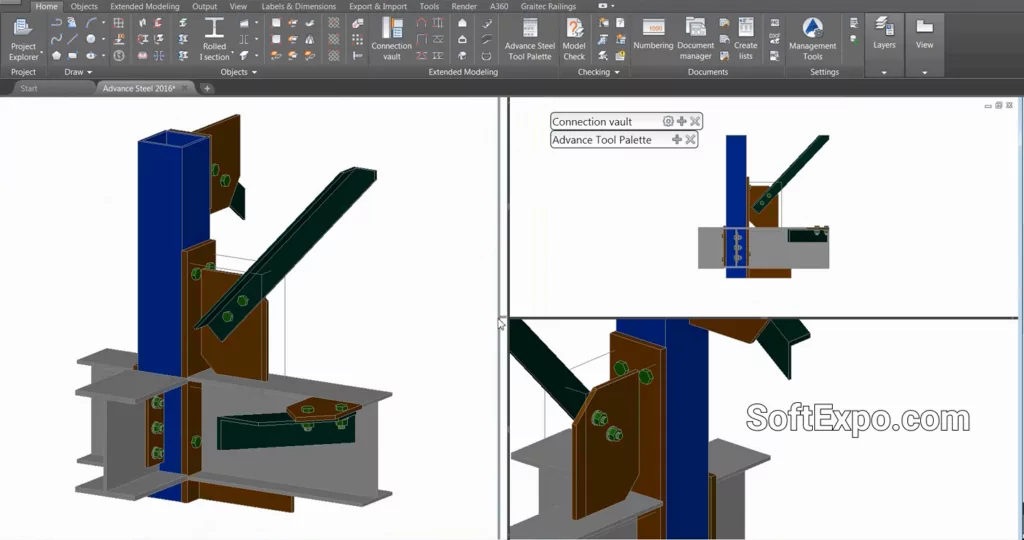

The work is based on parametric 3D modeling. There are many 3D modeling programs on the market, but few of them have such deep functionality. Users create beams, columns, connections, decking, sheet metal parts, as well as stairs and railings using a system of smart macros. The model remains associative, and any changes to the geometry are automatically reflected in the documentation. This approach saves time on routine edits and reduces the risk of inconsistencies.
One of the key features is the extensive library of parametric steel connections. Bolted, welded, and combined joints can be customized using intuitive parameters such as fastener types, clearances, chamfers, and stiffeners. Frequently used connections can be saved as templates and reused in new projects. This reduces human error and speeds up the standardization of solutions across the company.
When the model is ready, Advance Steel automatically generates shop drawings, general assembly sheets, and schedules. The program creates a bill of materials (BOM) and labels with weight, material, and marking. Numerical control (NC) data (e.g., DSTV) and DXF for sheet cutting are generated for the workshop, enabling direct data transfer to the machines. This results in less manual input, fewer errors, and faster production start-up.
The automatic numbering system assigns unique positions to parts and assemblies, and tracks revisions when changes are made. Visual change markers and clear reports help the team control versions and help installers understand exactly what has changed and where. Everything is clear and easy to track, as if it were not a complex architectural project, but routine actions to tidy up a PC using optimization and cleaning programs.
Advance Steel can be flexibly customized to corporate standards. Sheet templates, footnote styles, stamp rules, and BOM generation are available to meet customer requirements or ERP/MIS systems. Reports and drawing styles can be supplemented with your own fields, logic, and release processes: from batch release of a set to selective updating of individual sheets.
Revit synchronization and export/import via IFC, DWG, and other formats are useful for collaborating with colleagues and analysts. Thanks to this interoperability, the Advance Steel model can be easily connected to coordination, collision checks, and calculations. Within BIM workflows, this simplifies the coordination of steel sections with reinforced concrete, engineering, and architecture, and also allows the use of shared cloud storage and task tracking.
Three factors contribute to the cumulative effect. First, parametric design and macros eliminate routine tasks during the modeling stage. Second, associative drawings and BOMs eliminate manual edits when changes are made. Third, direct generation of NC data reduces the links between the design and the shop floor. Overall, the team switches between tools less often, and the quality of documentation improves thanks to uniform rules and standards.
Autodesk Advance Steel is not just steel detailing software, but a link between design and manufacturing. Parametric nodes, automatic generation of shop drawings, bill of materials (BOM) specifications, and numerical control (NC) data files, plus advanced interoperability and Revit synchronization within common BIM workflows make it a reliable choice for companies that value speed, predictability, and accuracy in the release of construction drawings. If your goal is to standardize processes and accelerate the path from idea to metal, Advance Steel provides all the tools you need to do so.
