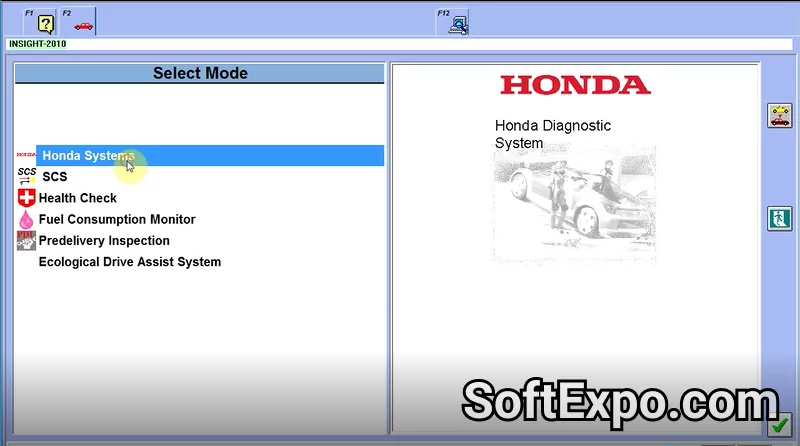

Exceptional tools are required in professional diagnostics of Honda and Acura vehicles, and provide dealer-level functionality. Now under the name i-Honda Diagnostic System (HDS) the system offers extensive electronic control unit control, enhanced troubleshooting and reprogramming of ECUs to automotive technicians and repair centers.
Understanding Honda i-HDS Architecture
The i-HDS platform operates as a subscription-based software suite that connects professional-grade diagnostics with cloud-based service information. This system replaces traditional standalone diagnostic equipment with an internet-enabled approach that ensures access to current vehicle data and updated programming files.
The basic functionality is the ability to read diagnostic trouble codes on many of the vehicle systems, run active tests on each component, view live-data feeds on sensors, and perform full ECU reflashing. The software is compatible with Honda and Acura cars that date back to 1992 to the current model year, which is a comprehensive coverage on both OBD-I and OBD-II compliant systems.
Technical Requirements and Hardware Integration
Successful implementation requires specific hardware components working in concert with the software platform. The system operates on Windows-based computers and requires a J2534-compliant pass-through device for vehicle communication.
Honda officially recommends the Denso DST-i or Bosch MVCI interfaces, as these devices have undergone extensive validation testing to ensure reliable interaction with both diagnostics and reprogramming operations. Generic J2534 devices may function but lack manufacturer-verified compatibility assurance.
Critical system specifications include a stable Windows environment, minimum 8GB RAM for smooth operation, reliable high-speed internet connection for subscription validation and software updates, and adequate storage for diagnostic logs and reprogramming files.
Strategic Diagnostic Capabilities
The software delivers multi-system scanning that simultaneously interrogates engine control modules, transmission control units, ABS systems, airbag modules, body control computers, and climate control systems. This parallel approach accelerates fault identification compared to sequential testing methods.
Advanced features include bidirectional controls for actuating components during testing, graphing functions for analyzing sensor data trends, freeze frame analysis for capturing conditions during fault occurrence, and guided troubleshooting workflows when paired with Service Information System subscriptions.
The i-Troubleshooting integration provides step-by-step diagnostic procedures based on detected fault codes, significantly reducing diagnostic time and improving first-time fix rates.
ECU Reprogramming and J2534 Rewrite Operations
Software updates for vehicle control modules represent critical functionality for modern repair operations. The J2534 Rewrite application within i-HDS enables complete reflashing of programmable control units including engine computers, transmission controllers, and various chassis modules.
Reprogramming procedures require strict adherence to voltage stability protocols. Battery voltage fluctuations during the flashing process can corrupt module programming, potentially causing vehicle inoperability. Professional operations utilize battery maintainers or external power supplies to ensure consistent voltage delivery throughout the procedure.
The system automatically downloads the latest calibration files for specific vehicle configurations, ensuring technicians always apply current software versions. This eliminates outdated programming issues and ensures vehicles receive the most recent manufacturer updates addressing known software concerns.
