Typical workflows

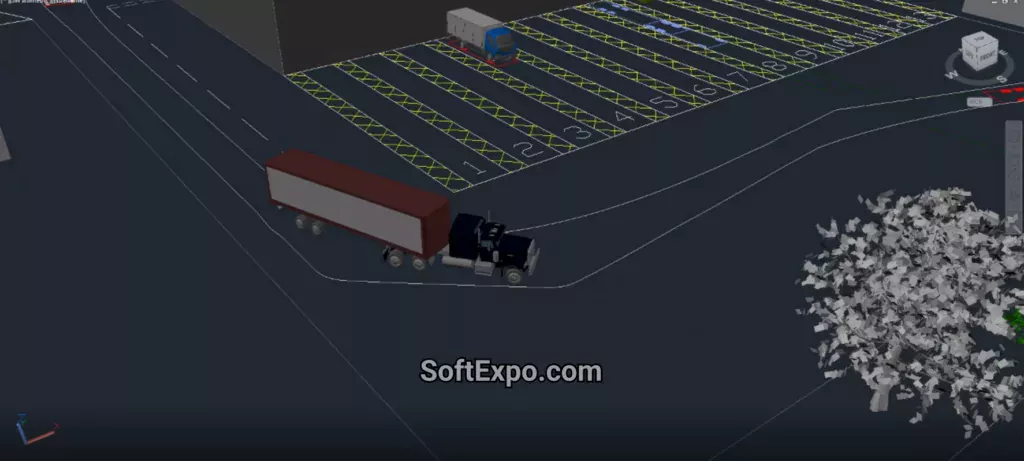

During early feasibility, place a design vehicle, run a turning radius check, and confirm curb return geometry for delivery trucks or school buses before grading begins. In parking lot layout, rules-driven tools help balance stall count and circulation with realistic vehicle envelope analysis, avoiding hand-drafting rework. For roundabout design, quickly iterate the inscribed circle and splitter islands, then validate entry deflection and swept paths for the chosen design vehicle.
Integration in the AEC Collection
AVT is licensed within the AEC Collection so transportation designers can move smoothly between Civil 3D for corridor modeling and Vehicle Tracking for turning movements, parking, and roundabout checks. This connected approach supports BIM data continuity and makes it easier to keep swept path results aligned with evolving horizontal and vertical geometry.
Real-world applications
- Urban intersections: Confirm bus turning circles and emergency vehicle access without oversizing curb radii that reduce pedestrian safety.
- Logistics sites: Validate tractor–trailer docking, site access maneuvering, and trailer swing clearance to minimize bollard and façade conflicts.
- Airports and rail: Analyze aircraft taxiway movement and light rail alignment turns when clearances are tight and safety margins are critical.
Licensing and versions
A Vehicle Tracking subscription allows installation on multiple devices for a single named user, with use limited to one device at a time. Subscribers can typically access up to three prior releases through their Autodesk Account, which helps teams maintain compatibility across projects and consultants.
Expert setup tips
- Start with the correct regional design vehicle and dimension set, then save a project-specific library for consistency across drawings.
- Test worst-case maneuvers early—fire apparatus, refuse trucks, or long semis—before finalizing kerb returns or islands.
- Keep layers, colors, and naming conventions clear so reviewers can read swept paths, vehicle envelopes, and annotation at a glance.
- For parking lot layout, tune aisle widths and end-cap radii to balance stall count with realistic turning feasibility, not just code minimums.
- At roundabouts, validate both swept paths and fastest path so safety and capacity objectives align with geometry.
Civil 3D workflow notes
Civil 3D users can launch swept path analysis within active drawings to test turning movements along alignments, profiles, and proposed intersections without exporting geometry. This tight loop improves design speed and helps maintain a single source of truth as corridor features change.
Roundabouts and design vehicles
Use roundabout properties and design-vehicle libraries to standardize checks, then document vehicle paths and offsets directly in the model for submittals. Consistent vehicle definitions also make it easier to review updates over time as geometry evolves.
Key benefits at a glance
- Reduce redesign risk by proving turning feasibility and clearance at concept stage.
- Accelerate documentation with automated parking and roundabout tools that respect real-world vehicle behavior.
- Support connected BIM workflows within the AEC Collection, improving team alignment and review clarity.
Frequently Asked Questions about Free Download Autodesk Vehicle Tracking
1. What is Autodesk Vehicle Tracking used for in swept path analysis and roundabout design?
Autodesk Vehicle Tracking is used for swept path analysis, vehicle turning simulations, roundabout design, and parking lot layout inside AutoCAD and Civil 3D. It helps engineers and transportation planners validate vehicle turn paths, optimize car park geometry, and model traffic movements within BIM workflows using DWG files.
2. How do I install Autodesk Vehicle Tracking 2025 and what are the Windows 11 system requirements?
Install Autodesk Vehicle Tracking 2025 by running the installer and enabling the add-in for AutoCAD or Civil 3D during setup. For Windows 11 or Windows 10 (64‑bit), ensure a modern multi-core CPU, 16 GB RAM (8 GB minimum), a DirectX 11+ GPU, and adequate SSD storage. Compatibility typically covers recent AutoCAD/Civil 3D versions, enabling seamless swept path analysis and roundabout modeling.
3. Does Autodesk Vehicle Tracking integrate with AutoCAD, Civil 3D, Revit, and BIM workflows?
Yes. It installs as an add-in for AutoCAD-based products, including Civil 3D, and supports DWG-centric design. You can exchange geometry with Revit for BIM coordination, use standard vehicle libraries, and create custom vehicles to enhance traffic simulation, parking layout, and corridor design workflows.
